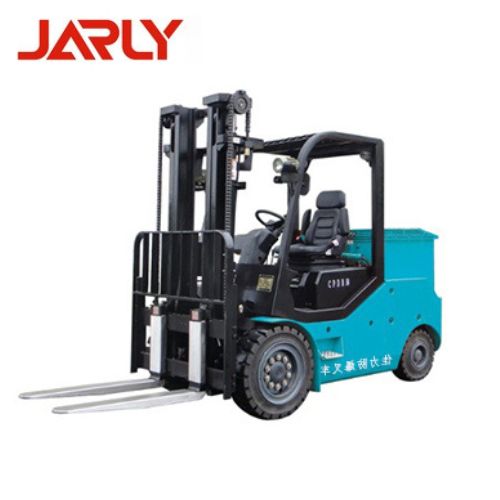

Electric Explosion Proof Forklift

4-5 TONS ELECTRIC EXPLOSION-PROOF FORKLIFT TRUCKS

Adopting international advanced explosion-proof AC control system, it has excellent climbing performance and anti-ramp skidding function.

TYPE: CPDB
CAPACITY: 4-5
EXPLOSION-PROOF MARKING: Ex sdeⅡB T4 Gb/ Ex desⅡC T4 Gb
ZONE: 1 Zone、2 Zone

Send email to us Download as PDF

Product Details

Product Tags

TYPE		UNIT	CPDB40		CPDB45	CPDB50
Rated Lifting Capacity		kg	4000		4500	5000
Load Centre		mm	500
Max. Lifting Height		mm	3000
Max. Traveling Speed ( Full Load )		km/h	16
Overall Dimensions	Length	mm	3900
	Width		1435
	Height		2284
Fork Length			1070
Min. Turning Radius			2700	2760
Max. Gradeability		%	16	15		13
Self Weight		kg	7160		7280	7500
Acquisition of Certification		-	Type test certification, Explosion-proof certification
Explosion-proof Marking		-	Ex sdeⅡB T4 Gb/ Ex desⅡC T4 Gb
Suitable Explosion-Proof Area		-	1 Zone and 2 Zone
Explosive Gas Group		-	IIB and IIC
Temperature Level		-	135˚C (T4)
Explosion Proof Certification Organization		-	National Centre for Supervision and Inspection of Explosion-proof Electrical Product Quality (Nanyang, China)

1. Adopting international advanced explosion-proof AC control system, it has excellent climbing performance and anti-ramp skidding function.

2.The design concept of combining active protection and explosion-proof measures, adopting intelligent control system such as thermal protection system, insulation monitoring system, overload protection system, etc., the explosion-proof reliability is high.

3. Rich energy recovery function.

4. Maintenance-free motor, low maintenance cost.

5. Ergonomic design, comfortable operation and beautiful appearance.

Explosion-proof symbol: Exdembibs IIB T4 Gb/ExtD mbD ibD A21 IP65T135℃.

Suitable for explosive gas environments (1, 2 zones) and non-conductive dust environments (21, 22 zones), such as: petrochemical, military, pharmaceutical, and paint and other industries of explosive environments such as warehouses and other places of stacking operations.
