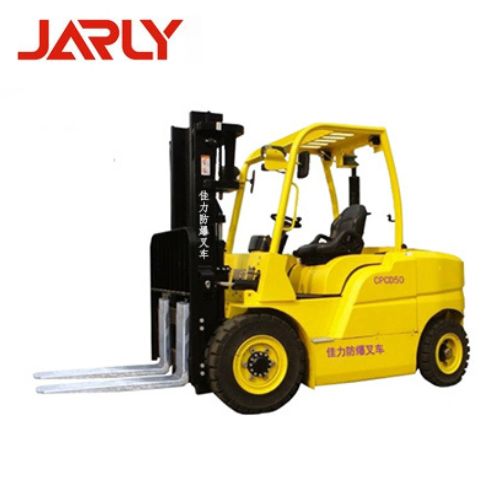

Internal Combustion Explosion Proof Forklift
TYPE | UNIT | CPCD40 | CPCD45 | CPCD50 | ||
Rated Lifting Capacity | kg | 4000 | 4500 | 5000 | ||
Load Centre | mm | 500 | ||||
Max. Lifting Height | mm | 3000 | ||||
Maximum travelling speed Ⅰ / Ⅱ gears (Full Load) | km/h | 12/18 | ||||
Maximum travelling speed Ⅰ / Ⅱ gears (No Load) | 13/19 | |||||
Gradeability (Full load) | % | 18 | ||||
Overall Dimensions | Length | | 4020 | |||
Width | 1470 | |||||
Height | 2385 | |||||
Mast Height | 2335 | |||||
Fork Length | 1070 | |||||
Min. Turning Radius | 2750 | |||||
Self Weight | kg | 7400 | 7500 | 7600 | ||
Acquisition of Certification | - | Type test certification, Explosion-proof certification | ||||
Explosion-proof Marking | - | Ex de ib s ⅡB T4 Gb/Ex tD ibD A21 IP6X T130℃ | ||||
Suitable Explosion-Proof Area | - | 1 Zone, 2 Zone and 21 Zone, 22 Zone | ||||
Explosive Gas Group | - | IIB | ||||
Temperature Level | - | 135˚C (T4) | ||||
Explosion Proof Certification Organization | - | National Centre for Supervision and Inspection of Explosion-proof Electrical Product Quality (Nanyang, China) | ||||
1. Overall explosion-proof design and manufacture of the whole machine, high explosion-proof reliability and superior performance. The internal combustion explosion-proof engine is the driving force, strong power.
2. The whole machine is controlled by full intelligence, including temperature rise control of the whole machine, engine running flame failure control, engine exhaust gas temperature control, combustible gas concentration sensing system, insulation monitoring system of the whole machine and a series of functional control systems, such as a unique cooling system, to ensure that the whole machine operates at a low temperature rise.
3. Hydraulic wet power brake is adopted, with huge braking force and high reliability.
4. Adopt stepless speed regulation, smooth running and good manoeuvrability.
Explosion-proof mark: for x d e id s IIB T4 Gb/Ex tD ibD A21 IP65 T135°C
Suitable for use in (1, 2) zone explosive gas environment and (21/22) zone non-conductive dust environment, such as: petroleum, chemical industry, military industry, medicine, paper, paint and other hazardous workplaces such as handling and loading.
