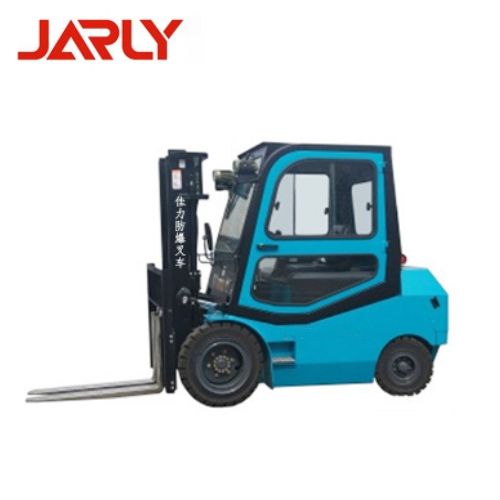

Electric Explosion Proof Forklift

2-3.5 TONS ELECTRIC EXPLOSION-PROOF FORKLIFT TRUCKS

The design concept of combining active protection and explosion-proof measures, adopting intelligent control system such as thermal protection system, insulation monitoring system, overload protection system, etc., the explosion-proof reliability is high.

TYPE: CPDB
CAPACITY: 2-3.5
EXPLOSION-PROOF MARKING: Ex desⅡBT4/Ex tD A21 IP65 T130℃
ZONE: 1 Zone、2 Zone and 21 Zone、22 Zone

Send email to us Download as PDF

Product Details

Product Tags

TYPE		UNIT	CPDB20	CPDB25	CPDB30	CPDB35
Rated Lifting Capacity		kg	2000	2500	3000	3500
Load Centre		mm	500
Max. Lifting Height		mm	3000
Mast Tilt Angle ( Forward/Backward )		°	6/12
Min. Turning Radius		mm	2110	2270
Gradeability ( Full Load )		％	15			13
Overall Dimensions	Length	mm	3435	3605
	Width		1200	1250
	Height		2150	2160		2170
Self Weig		kg	4000	4600	4870	5050
Acquisition of Certification		-	Type test certification, Explosion-proof certification, CE
Explosion-proof Marking		-	Ex desⅡBT4/Ex tD A21 IP65 T130℃
Suitable Explosion-Proof Area		-	1 Zone, 2 Zone and 21 Zone, 22 Zone
Suitable Explosion-Proof Area		-	IIB
Temperature Level		-	135˚C (T4)
Explosion Proof Certification Organization		-	National Centre for Supervision and Inspection of Explosion-proof Electrical Product Quality (Nanyang, China)

1. Adopting international advanced explosion-proof AC control system, it has excellent climbing performance and anti-ramp skidding function.

2.The design concept of combining active protection and explosion-proof measures, adopting intelligent control system such as thermal protection system, insulation monitoring system, overload protection system, etc., the explosion-proof reliability is high.

3. Rich energy recovery function.

4. Maintenance-free motor, low maintenance cost.

5. Ergonomic design, comfortable operation and beautiful appearance.

Explosion-proof sign： Exdembibs lIB T4 Gb/ExtD mbD ibD A21 IP65T135℃

Suitable for explosive gas environment (1, 2 zones) and non-conductive dust environment (21, 22 zones), such as: coal chemical industry, oil chemical industry, military industry, explosives, pharmaceuticals, pesticides, papermaking, food processing, wood processing, cement and other hazardous workplaces.
